Build a Real Time Chat App with Rust and Tokio

· 16 min read
forfd8960
forfd8960
Author

Introduction​

Today, we're diving into building a lightweight, multi-client text chat server that leverages Rust and Tokio to deliver seamless, real-time messaging.

So, to build real time text-based chat app, there are some issues that need to resolve:

  • How to make the app real time
  • How to Decode from the raw bytes from TCP connection, and Encode the Message and send through the TCP Connection?.
  • How to build a multi-client server to accept clients conn.
  • How to dispatch the Message from one user to other users(clients).
  • How to Manage the users, channels, and messages.

Prerequisites​

So, to understand this project, you may need to know some Rust knowledge:

  • how to use struct to build custom data structure.
  • how to use std collection data type, like: HashMap, Vec, hashSet.
  • how to safely share data between different async task with Arc<RwLock<T>>.

Project Setup​

  • Initialize the project:
cargo new --bin txt-chat
  • the project dir:
➜  txt-chat git:(main) ✗ tree -I target
.
├── Cargo.lock
├── Cargo.toml
├── README.md
├── examples
│   └── server.rs
├── server_log.png
└── src
    ├── chatsvc
    │   └── mod.rs
    ├── client
    │   └── client.rs
    ├── errors.rs
    ├── event
    │   ├── handler.rs
    │   └── mod.rs
    ├── lib.rs
    └── main.rs
  • Dependencies:
[dependencies]
tokio = { version = "1.47.1", features = ["io-std", "io-util", "net", "sync", "rt-multi-thread", "signal", "macros"] }
bytes = "1"
tracing = "0.1.41"
tracing-subscriber = "0.3.20"
tokio-util = { version="0.7.16", features=["codec"] }
thiserror = "2.0.16"
chrono = "0.4.42"
nanoid = "0.4.0"
anyhow = "1.0.99"
futures = "0.3"

Core Concepts​

  • Tokio Runtime:

Tokio is A runtime for executing asynchronous Rust code. Since for our chat project, the multi-client will async connect to the server and the message dispatch will handled async.

In tokio, there is a channel type: broadcast channel:

A multi-producer, multi-consumer broadcast queue. Each sent value is seen by all consumers. A Sender is used to broadcast values to all connected Receiver values. Sender handles are clone-able, allowing concurrent send and receive actions. Sender and Receiver are both Send and Sync as long as T is Send.

When a value is sent, all Receiver handles are notified and will receive the value.

which is very suit for our chat app, since we will use this brocast chaneel to dispatch the message between multiple clients.

  • LinesCodec: Demystify line-based encoding/decoding for TCP streams, including framing errors and buffering.

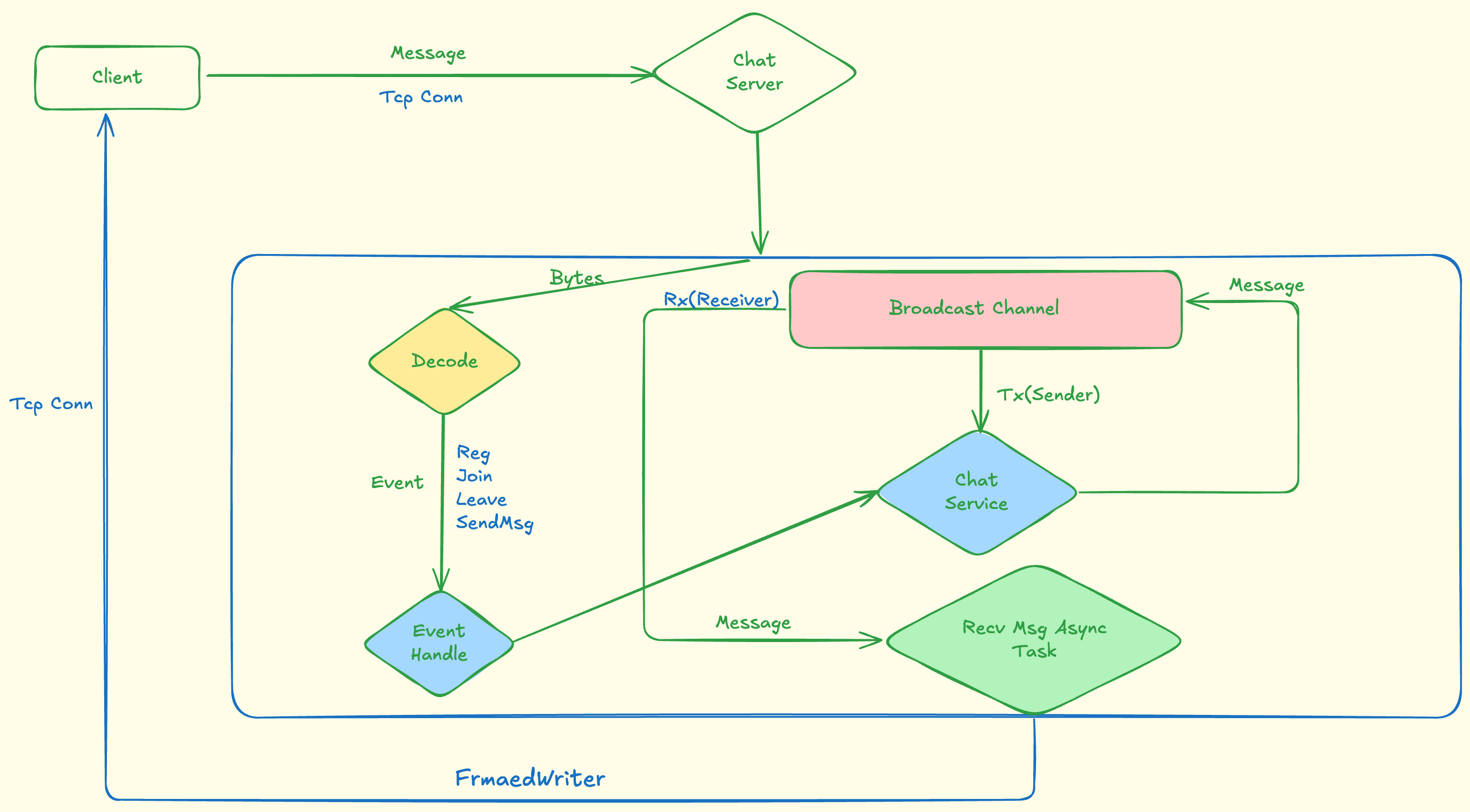

The data flow​

before we dive in implementation of the chat server, let first check how the data(message) was flowed in the chat service.

Data Flow

Implementing the Chat Server​

  • Step 1: Setting up the Tokio runtime and TCP listener.
    • Bind to a port (e.g., 8080) and accept incoming connections asynchronously.
use std::sync::Arc;

use anyhow::anyhow;
use futures::{SinkExt, StreamExt};
use tokio::io::{self, WriteHalf};
use tokio::net::{TcpListener, TcpStream};
use tokio::sync::{RwLock, broadcast};
use tokio_util::codec::{FramedRead, FramedWrite, LinesCodec};
use tracing::{info, level_filters::LevelFilter, warn};
use tracing_subscriber::{Layer as _, fmt::Layer, layer::SubscriberExt, util::SubscriberInitExt};
use txt_chat::chatsvc::Message;
use txt_chat::{
    chatsvc::ChatService,
    event::{Event, handler::handle_event},
};

#[tokio::main]
async fn main() -> anyhow::Result<()> {
    let layer = Layer::new().with_filter(LevelFilter::INFO);
    tracing_subscriber::registry().with(layer).init();

    let addr = "0.0.0.0:9090";
    let listener = TcpListener::bind(&addr)
        .await
        .map_err(|e| anyhow!("Faile to listen on {}: {}", addr, e))?;

    info!("server listen on: {}", addr);
}
  • Step 2: Handling client connections.
    • Spawn a task per client for reading/writing to the socket.
    • Use Framed with LinesCodec to decode incoming lines into strings.

src/main.rs

#[tokio::main]
async fn main() -> anyhow::Result<()> {
    // ...

    let (tx, _) = broadcast::channel::<Message>(1000);
    let tx1 = tx.clone();
    let chat_sevice = Arc::new(RwLock::new(ChatService::new(1000, tx)));

    loop {
        match listener.accept().await {
            Ok((socket, client_addr)) => {
                info!("accept conn from: {}", client_addr.clone());

                let uid = format!("{:?}", client_addr);
                let tx_clone = tx1.clone();
                let svc = chat_sevice.clone();
                tokio::spawn(async move {
                    serve_conn(socket, uid, tx_clone, &svc).await;
                });
            }
            Err(e) => warn!("Faield to accept conn: {}", e),
        }
    }
}
  • Create a global broadcast sender in the main task.
  • On receiving a message from a client, send it via the broadcast channel.
async fn serve_conn(
    socket: TcpStream,
    uid: String,
    tx: Sender<Message>,
    chat_sevice: &Arc<RwLock<ChatService>>,
) {
    // Split the socket into read and write halves
    let (reader, writer) = io::split(socket);

    let mut framed_read = FramedRead::new(reader, LinesCodec::new());
    let mut framed_write = FramedWrite::new(writer, LinesCodec::new());

    let user_id1 = uid.clone();
    let mut rx = tx.subscribe();

    let svc1 = chat_sevice.clone();
    let svc2 = chat_sevice.clone();

    tokio::spawn(async move {
        info!("recv msg for user: {}", user_id1);
        recv_msg(svc1, user_id1, &mut rx, &mut framed_write).await;
    });

    loop {
        match framed_read.next().await {
            Some(frame_res) => match frame_res {
                Ok(message) => {
                    info!("read message from client: {:?}", message);

                    let event = Event::from_string(message);
                    match event {
                        Ok(ev) => {
                            info!("handle event: {:?}", ev);
                            handle_event(uid.clone(), svc2.clone(), ev).await;
                        }
                        Err(e) => {
                            warn!("error: {}", e);
                        }
                    }
                }
                Err(e) => {
                    warn!("fail read frame: {:?}", e);
                    break;
                }
            },
            None => {
                warn!("No frame");
                break;
            }
        }
    }
}
  • Step 3: Broadcasting to clients.
    • Each client subscribes to the broadcast receiver.
    • Handle incoming broadcasts by encoding lines and writing back to the socket.
async fn recv_msg(
    svc: Arc<RwLock<ChatService>>,
    uid: String,
    rx: &mut broadcast::Receiver<Message>,
    framed_write: &mut FramedWrite<WriteHalf<TcpStream>, LinesCodec>,
) {
    while let Ok(msg) = rx.recv().await {
        let svc = svc.read().await;
        if !svc.is_user_sub(&uid, &msg.chan_id) {
            drop(svc);
            continue;
        }
        drop(svc);

        let _ = framed_write
            .send(msg.to_string())
            .await
            .map_err(|e| anyhow!("Failed to send response: {}", e));
    }
}

Implementing the Event and Event Handle​

In the event mod, we define different messages that client can send to chat server.

and implemented how to parse event from a line of string.

  • src/event/mod.rs
use crate::errors::ChatErrors;

pub mod handler;


#[derive(Debug, Clone)]
pub enum Event {
    Register{username: String}, // reg${{username}}
    CreateChan{user_id: String, chan_name: String}, // create_chan$123$MyChat
    JoinChan{user_id: String, chan_id: String}, // join$123$456
    LeaveChan{user_id: String, chan_id: String}, // leave$123$456
    SendMsg{user_id: String, chan_id: String, msg: String}, // send_msg$123$456$Hello
    Unknown,
}

impl Event {
    pub fn from_string(line: String) -> Result<Self, ChatErrors> {
        let parts: Vec<&str> = line.split("$").into_iter().collect();
        match parts[0] {
            "reg" => {
                if parts.len() < 2 {
                    return Err(ChatErrors::InvalidCommand("reg need username".to_string()));
                }
                Ok(Self::Register { username: parts[1].to_string()})
            }

            "create_chan" => {
                if parts.len() < 3 {
                    return Err(ChatErrors::InvalidCommand("create channel need user id and chan name".to_string()));
                }
                Ok(Self::CreateChan { user_id: parts[1].to_string(), chan_name: parts[2].to_string() })
            }

            "join" => {
                if parts.len() < 3 {
                    return Err(ChatErrors::InvalidCommand("join need user id and chan id".to_string()));
                }
                Ok(Self::JoinChan { user_id: parts[1].to_string(), chan_id: parts[2].to_string() })
            }

            "leave" => {
                if parts.len() < 3 {
                    return Err(ChatErrors::InvalidCommand("leave need user id and chan id".to_string()));
                }
                Ok(Self::LeaveChan { user_id: parts[1].to_string(), chan_id: parts[2].to_string() })
            }

            "send_msg" => {
                if parts.len() < 4 {
                    return Err(ChatErrors::InvalidCommand("send_msg need user id and chan id and msg content".to_string()));
                }
                Ok(Self::SendMsg { user_id: parts[1].to_string(), chan_id: parts[2].to_string() , msg: parts[3].to_string() })
            }
            _ => Err(ChatErrors::CommandNotSupport(parts[0].to_string()))
        }
    }
}

In the event handler, we dispatch the event to related Service method to finish the

  • src/event/handler.rs
use std::sync::Arc;

use tokio::sync::RwLock;
use tracing::info;

use crate::{chatsvc::ChatService, event::Event};

pub async fn handle_event(uid: String, svc: Arc<RwLock<ChatService>>, event: Event) {
    info!("start handle event");
    let mut svc = svc.write().await;
    info!("lock service...");

    match event {
        Event::Register { username } => {
            info!("adding user to service");
            svc.add_user(username, uid);
        }
        Event::CreateChan { user_id, chan_name } => {svc.create_chan(user_id, chan_name, None);},
        Event::JoinChan { user_id, chan_id } => svc.join_chan(user_id, chan_id),
        Event::LeaveChan { user_id, chan_id } => svc.leave_chan(user_id, chan_id),
        Event::SendMsg {
            user_id,
            chan_id,
            msg,
        } => svc.send_msg(user_id, chan_id, msg),
        Event::Unknown => {},
    }
}

implement the Chat Service​

src/chatsvc/mod.rs

chat serice is the core data structure that used to manange the user-channel relation.

use nanoid::nanoid;
use std::collections::{HashMap, HashSet};
use tracing::{info, warn};

use chrono::Utc;
use tokio::sync::broadcast;

const JOIN_RESP: &'static str = "$$joined";

#[derive(Debug, Clone)]
pub struct UserInfo {
    pub id: String,
    pub name: String,
}

#[derive(Debug, Clone)]
pub struct Message {
    pub chan_id: String,
    pub sender: String,
    pub content: String,
    pub send_time: chrono::DateTime<Utc>,
}

#[derive(Debug)]
pub struct Channel {
    pub id: String,
    pub name: String,
    pub online_users: HashMap<String, ()>,
}

pub struct ChatService {
    pub tx: broadcast::Sender<Message>,
    pub users: HashMap<String, UserInfo>,
    pub channels: HashMap<String, Channel>,
    pub user_chans: HashMap<String, HashSet<String>>,
}

Register User​

  • user added to the users HashMap with uid as the key, userInfo(uid, name) as the value.
  • automaticly create a channel with id=user_id.
  • send the channel_id to the broadcast channel.
impl ChatService {
    // ...
    pub fn add_user(&mut self, name: String, uid: String) {
        let user = UserInfo {
            id: uid.clone(),
            name: name.clone(),
        };

        info!("create user: {:?}", user);

        self.users.insert(uid.clone(), user.clone());
        let chan_id = self.create_chan(uid.clone(), name.clone(), Some(uid.clone()));
        info!("user: {} created chan: {}", uid.clone(), chan_id.clone());

        self.send_msg(name, chan_id.clone(), chan_id);
    }
    // ...
}

Create Channel​

  • Create a channel with the name.
  • Append the channel into the channels HashMap.
  • insert the channel_id into the user_chans data to know what chans user joined.
  • send back the chan_id to user with broadcast channel.
pub fn create_chan(
        &mut self,
        uid: String,
        name: String,
        pre_chan_id: Option<String>,
    ) -> String {
        let mut chan = Channel::new(name);
        let mut not_send = false;
        if pre_chan_id.is_some() {
            not_send = true;
            chan.id = pre_chan_id.unwrap();

        let chan_id = chan.id.clone();
        self.channels.insert(chan_id.clone(), chan);

        let mut set = HashSet::new();
        set.insert(chan_id.clone());

        self.user_chans
            .entry(uid.clone())
            .and_modify(|chans| {
                chans.insert(chan_id.clone());
            })
            .or_insert(set);

        if not_send {
            return chan_id;
        }

        if let Some(user) = self.users.get(&uid) {
            self.send_msg(user.name.clone(), chan_id.clone(), chan_id.clone());
        }

        chan_id
    }

Join Channel​

  • get channel with chan_id from user event.
  • insert the channel_id into the user_chans.
  • send the joined chan_id back to tokio broadcast channel.
pub fn join_chan(&mut self, uid: String, chan_id: String) {
        match self.channels.get_mut(&chan_id) {
            Some(chan) => {
                chan.join(uid.clone());

                let mut set = HashSet::new();
                set.insert(chan_id.clone());

                self.user_chans
                    .entry(uid.clone())
                    .and_modify(|chans| {
                        chans.insert(chan_id.clone());
                    })
                    .or_insert(set);

                if let Some(user) = self.users.get(&uid) {
                    self.send_msg(
                        user.name.clone(),
                        chan_id.clone(),
                        format!("{}: {}", JOIN_RESP, chan_id),
                    );
                }
            }
            None => info!("chan {} not found", chan_id),
        }
    }

leave channel​

  • get channel with chan_id from user event.
  • remove the channel_id from the user_chans.
  • send the joined chan_id back to tokio broadcast channel.
pub fn leave_chan(&mut self, uid: String, chan_id: String) {
        match self.channels.get_mut(&chan_id) {
            Some(chan) => {
                chan.leave(uid.clone());

                match self.user_chans.get_mut(&uid) {
                    Some(chans) => {
                        chans.remove(&chan_id);
                    }
                    None => {}
                }
            }
            None => info!("chan {} not found", chan_id),
        }
    }

Send Message​

  • send the Message to the tokio broadcast channel, and the recv_msg task will consume the message in the main
    pub fn send_msg(&self, username: String, chan_id: String, msg: String) {
        match self.channels.get(&chan_id) {
            Some(_) => {
                match self
                    .tx
                    .send(Message::new(username.clone(), chan_id.clone(), msg))
                {
                    Ok(v) => {
                        info!("success send {} message", v);
                    }
                    Err(e) => warn!("failed to send msg to channel: {}, {}", chan_id, e),
                }
                info!("user: {} send msg to: {}", username, chan_id);
            }
            None => {
                info!("chan {} not found", chan_id);
            }
        }
    }

Building a Simple Client​

The client for a real-time text chat app using Tokio for async I/O. It connects to a TCP server, registers a user, handles stdin input (messages or commands), and processes server responses. Core flow: setup → register → input loop (send) → response loop (receive) → cleanup.

#[tokio::main]
async fn main() -> Result<()> {
    let layer = Layer::new().with_filter(LevelFilter::INFO);
    tracing_subscriber::registry().with(layer).init();

    // Connect to the server
    let stream = TcpStream::connect("0.0.0.0:9090").await?;
    info!("Connected to 0.0.0.0:9090");

    let user_id = format!("{:?}", stream.local_addr()?);

    // Split the stream into read and write halves
    let (read_half, write_half) = stream.into_split();

    // Create framed reader and writer with LinesCodec
    let mut framed_read = FramedRead::new(read_half, LinesCodec::new());
    let mut framed_write = FramedWrite::new(write_half, LinesCodec::new());

    let args: Vec<String> = env::args().collect();
    let user_name = &args[1];

    if let Some(Ok(welcome)) = framed_read.next().await {
        info!("{}", welcome);
    }

    match framed_write.send(encode_reg(user_name.to_string())).await {
        Ok(_) => {}
        Err(e) => {
            warn!("register user failed: {}", e);
            return Ok(());
        }
    }

    let state = Arc::new(RwLock::new(ClientState::new(user_id)));
    if let Some(Ok(cur_chan)) = framed_read.next().await {
        let mut state = state.write().await;
        state.current_chan = cur_chan
    } else {
        warn!("register user failed");
        return Ok(());
    }
    let state_clone = state.clone();
    let state_clone1 = state.clone();

    // Spawn a task to handle sending lines from stdin
    let send_task = tokio::spawn(async move {
        let stdin = BufReader::new(tokio::io::stdin());
        let mut lines = stdin.lines();

        loop {
            let line_res = lines.next_line().await;
            match line_res {
                Ok(Some(line)) => {
                    if line.trim().is_empty() {
                        continue;
                    }

                    let state = state_clone.read().await;
                    let (yes, chan_id) = match is_join(line.clone()) {
                        Ok((yes, chan_id)) => (yes, chan_id),
                        Err(e) => {
                            warn!("error: {}", e);
                            (false, "".to_string())
                        }
                    };

                    if yes {
                        let msg = encode_join(&state, chan_id);
                        if framed_write.send(msg).await.is_err() {
                            warn!("Failed to send line");
                            break;
                        }
                    } else {
                        if let Ok(msg) = encode_send_msg(&state, line) {
                            if framed_write.send(msg).await.is_err() {
                                warn!("Failed to send line");
                                break;
                            }
                        }
                    }
                }
                Ok(None) | Err(_) => break,
            }
        }

        // Gracefully shut down the write half
        if let Err(e) =
            <FramedWrite<OwnedWriteHalf, LinesCodec> as SinkExt<String>>::close(&mut framed_write)
                .await
        {
            warn!("Failed to close writer: {}", e);
        }
    });

    // Read lines from the server until EOF or error
    while let Some(line_result) = framed_read.next().await {
        match line_result {
            Ok(line) => {
                println!(">> {}", line);

                let mut state = state_clone1.write().await;
                if let Ok(joined_chan) = parse_join_resp(&line) {
                    state.switch_chan(joined_chan);
                }
            }
            Err(e) => {
                eprintln!("Error reading line: {}", e);
                break;
            }
        }
    }

    // Wait for the send task to complete
    if let Err(e) = send_task.await {
        eprintln!("Send task failed: {}", e);
    }

    println!("Connection closed.");
    Ok(())
}

fn is_join(line: String) -> Result<(bool, String), String> {
    if line.starts_with("$") {
        let parts: Vec<&str> = line.split(" ").collect();
        if parts[0] == JOIN {
            if parts.len() < 2 {
                return Err("join need chan_id".to_string());
            }

            return Ok((true, parts[1].to_string()));
        }
        Ok((false, "".to_string()))
    } else {
        Ok((false, "".to_string()))
    }
}

fn parse_join_resp(line: &String) -> Result<String, String> {
    let parts: Vec<&str> = line.split(": ").collect();
    if parts.len() < 2 {
        return Err("invalid join resp".to_string());
    }

    if line.starts_with("$$") && parts[0] == JOIN_RESP {
        return Ok(parts[1].to_string());
    }

    Err("not join resp".to_string())
}

Key Components​

  • ClientState: Mutable struct tracking user ID, personal channel, current channel, and joined channels (HashSet). Methods: set UID, add/remove/switch channels.
  • Encoding Functions: Format commands as strings for server:
    • encode_reg: "reg$username"
    • encode_join: "join$uid$chan_id"
    • encode_leave: "leave$uid$chan_id" (unused here)
    • encode_create_chan: "create_chan$uid$chan_name" (unused)
    • encode_send_msg: "send_msg$uid$chan_id$message" (errors if no current chan)

Main Function Flow​

  1. Setup:

    • Init tracing logger (INFO level).
    • Connect TCP to "0.0.0.0:9090"; generate user_id from local addr.
    • Split stream into read/write halves; frame both with LinesCodec for line-based I/O.
    • Parse username from CLI args.

  2. Registration:

    • Read welcome message from server; log it.
    • Send registration: framed_write.send(encode_reg(username)).
    • Read server response (assigned channel); update ClientState (Arc<RwLock> for shared access).
    • Clone state for tasks.

  3. Send Task (Spawned Async):

    • Read stdin lines via BufReader.
    • Loop:
      • Skip empty lines.
      • Check is_join(line): If starts with "$join chan_id", encode as join command.
      • Else, encode as message via encode_send_msg (uses current chan).
      • Send via framed_write; break on error.
    • Close writer on exit.

  4. Receive Loop (Main Task):

    • While lines from framed_read:
      • Print received line.
      • Parse with parse_join_resp: If "$$joined: chan_id", switch current chan in state.
      • Break on error.

Running and Testing the App​

Run Server​

➜  txt-chat git:(main) ✗ cargo run --bin txt-chat
     Running `target/debug/txt-chat`
2025-10-15T08:07:50.249541Z  INFO txt_chat: server listen on: 0.0.0.0:9090
2025-10-15T08:08:46.695356Z  INFO txt_chat: accept conn from: 127.0.0.1:53974
2025-10-15T08:08:46.695633Z  INFO txt_chat: read message from client: "reg$alice"
2025-10-15T08:08:46.695679Z  INFO txt_chat: handle event: Register { username: "alice" }
2025-10-15T08:08:46.695693Z  INFO txt_chat::event::handler: start handle event
2025-10-15T08:08:46.695710Z  INFO txt_chat::event::handler: lock service...
2025-10-15T08:08:46.695719Z  INFO txt_chat::event::handler: adding user to service
2025-10-15T08:08:46.695728Z  INFO txt_chat::chatsvc: create user: UserInfo { id: "127.0.0.1:53974", name: "alice" }
2025-10-15T08:08:46.695901Z  INFO txt_chat::chatsvc: user: 127.0.0.1:53974 created chan: 127.0.0.1:53974
2025-10-15T08:08:46.695925Z  INFO txt_chat::chatsvc: success send 1 message
2025-10-15T08:08:46.695936Z  INFO txt_chat::chatsvc: user: alice send msg to: 127.0.0.1:53974
2025-10-15T08:08:46.695982Z  INFO txt_chat: recv msg for user: 127.0.0.1:53974
2025-10-15T08:09:14.221609Z  INFO txt_chat: accept conn from: 127.0.0.1:53984
2025-10-15T08:09:14.221833Z  INFO txt_chat: read message from client: "reg$Bob"
2025-10-15T08:09:14.221868Z  INFO txt_chat: handle event: Register { username: "Bob" }
2025-10-15T08:09:14.221882Z  INFO txt_chat::event::handler: start handle event
2025-10-15T08:09:14.221898Z  INFO txt_chat::event::handler: lock service...
2025-10-15T08:09:14.221907Z  INFO txt_chat::event::handler: adding user to service
2025-10-15T08:09:14.221915Z  INFO txt_chat::chatsvc: create user: UserInfo { id: "127.0.0.1:53984", name: "Bob" }
2025-10-15T08:09:14.222037Z  INFO txt_chat::chatsvc: user: 127.0.0.1:53984 created chan: 127.0.0.1:53984
2025-10-15T08:09:14.222067Z  INFO txt_chat::chatsvc: success send 2 message
2025-10-15T08:09:14.222076Z  INFO txt_chat::chatsvc: user: Bob send msg to: 127.0.0.1:53984
2025-10-15T08:09:14.222100Z  INFO txt_chat: recv msg for user: 127.0.0.1:53984

Run Client​

  • first client
txt-chat git:(main) ✗ cargo run --bin txt-chat

2025-10-15T08:28:17.191198Z  INFO client: Connected to 0.0.0.0:9090
2025-10-15T08:28:17.191535Z  INFO client: ------Welcome to Txt Chat------
>> 127.0.0.1:54102
Hello
Alice
$join 127.0.0.1:54104
>> $$joined: 127.0.0.1:54104
2025-10-15T08:16:44.362032Z  INFO client: switched to channel: 127.0.0.1:54104
ni hao
>> ni hao
hello friend
>> hello friend
>>  127.0.0.1:54104how do you do
so far so good
>> so far so good
>> nice!
  • second client
2025-10-15T08:28:13.414724Z  INFO client: Connected to 0.0.0.0:9090
2025-10-15T08:28:13.415036Z  INFO client: ------Welcome to Txt Chat------

>> 127.0.0.1:54104
 127.0.0.1:54104>> $$joined: 127.0.0.1:54104
2025-10-15T08:16:44.362176Z  INFO client: switched to channel: 127.0.0.1:54104
>> ni hao
>> hello friend
how do you do
>>  127.0.0.1:54104how do you do
>> so far so good
nice!
>> nice!

Conclusion​

So now let's ansawer the question at the begain.

  • How to make the app real time

    We use TCP to build the connection between client and server, and send message to client real time.

  • How to Decode from the raw bytes from TCP connection, and Encode the Message and send through the TCP Connection?.

    We use tokio-util's LinesCodec to encode and decode the data comes from / send to the TCP connection.

  • How to build a multi-client server to accept clients conn.

    We use Tokio Runtime(tokio::spawn) to create async task to handler for every client.

  • How to dispatch the Message from one user to other users(clients).

    1. We use Tokio broadcast channel to dispatch the message to users.
    2. Chat Service will hold the Sender<T>, and every user(every client) will subscribe the channel(Receiver<T>).
    3. In the async task for every client, it will keeping receive message from rx(Receiver), and encode thourgh FramedWrite to write the message to TCP Connection.

  • How to Manage the users, channels, and messages.

    We use ChatService data structure to hold the user-channel relation, and message send through broadcast channel.

Code Repo​

Txt Chat
